This series features constant current protection, an ultra-wide operating temperature range, high efficiency, and an LED indicator, making it a stable and safe power supply for various applications. It also comes with a 3-year warranty.
Advantages
1. Wide Input Voltage Range.
Universal input voltage range: 85-264VAC/120-370VDC, withstands 300VAC input surges for 5s, accepts AC or DC input (dual use of the same terminal).
2. Exceptional Performance
① Efficiency up to 91%, improving the reliability and lifespan of the power supply.
② Operating temperature range: -40℃ to +70℃, at full load @45℃ without power reduction.
③ Output short-circuit, overcurrent, and overvoltage protections; when the output current ≥110%Io, and the output voltage is within 50%-100% of the rated voltage, the product is in constant current mode.
3. Wide Range of Applications

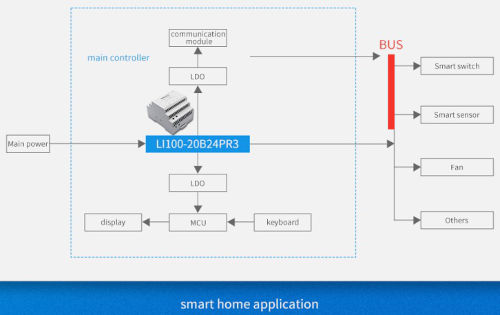

White housing and elegant design, especially suitable for smart home applications.
Suitable for small chassis, narrow cabinets, and common industrial control applications.
4. High quality and fast delivery.
① 3-year warranty, high I/O isolation voltage up to 4000VAC.
② Stable supply chain for fast delivery.
③ Overvoltage: IEC/EN61000-4-5 Line-to-line ±2KV; Harmonic current: IEC/EN61000-3-2 CLASS A; passes the 85℃ temperature and 85% humidity test.
④ Safety according to UL/EN/IEC62368, EN60335, EN61558, EN62477, EN61010, UKCA, BIS.
Applications:
It can be widely used in industrial control equipment, machinery, railway transportation, and other industrial equipment in harsh environments. It is also suitable for smart homes, providing high stability, high anti-interference, and high-performance electrical power supply to the system.
Features:
Input voltage range: 85-264VAC / 120-370VDC, withstands input surges of 300VAC for 5 seconds.
Efficiency up to 91%
. Operating temperature range: -40℃ to +70℃.
Compliant with OVC III, suitable for applications at altitudes up to 2000m (Designed to meet EN62477 standards).
3-year warranty.
DIN rail mounting: TS35X7.5/TS35X15.
Output protections against short circuit, overcurrent, and overvoltage.
Safety compliant with UL/EN/BS EN 62368, EN60335, EN61558, EN62477.
* For detailed information, please refer to the relevant data sheet on the Mornsun website; product news is for reference only.
