LED-source-wThe input range is 110–295VAC, and they are designed for constant current output. Both series offer four constant current output options, ranging from 350–1050mA. Designed with a unique PFC circuit, they provide a cost-effective energy solution for achieving a high PF value (PF>0.9). They also comply with harmonic current limitation according to EN61000-3-2 Class C and meet general lighting requirements.

The complete series has a no-load power consumption <0.5W and a start-up time <500ms, meeting the requirements of the European Union's ErP regulation for lighting accessories.

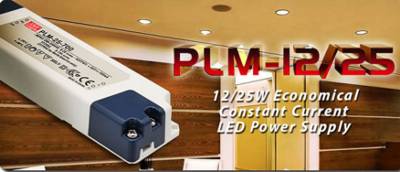

The PLM-12/25 series boasts an efficiency of up to 87% and an operating temperature range of -30°C to +45°C or +50°C with only free airflow ventilation, making it suitable for the high operating temperatures of enclosed lighting systems. Compliant with UL 94V-0 Class II, this double-insulated (without grounding) plastic housing provides crucial protection against electric shock. The input and output terminals feature a screwless clamp design, facilitating easier wiring installation. Furthermore, it incorporates short-circuit protection and meets global lighting certifications including ENEC EN61347-2-13, EN62384, UL8750, CB, and CE, ensuring safe operation. This series is suitable for all types of indoor LED lighting, including office, commercial, and decorative lighting applications.
Features:

    Input range: 110~295VAC;
    Constant current output: 350/500/700/1050mA
    ; Designed with active PFC function;
    No-load power consumption < 0.5W;
    Quick start-up time;
    High efficiency up to 87%;
    Plastic housing with 94V-0 fire protection level;
    Screwless clamp-style input and output terminals;
    Class II insulation, non-FG;
    Free airflow ventilation;
    Operating temperature: -30~+50℃ (PLM-12) / -30~+45℃ (PLM-25);
    Protections: Short circuit;
    Certifications: UL / CUL / ENEC / CB / CE;
    Dimensions (LxWxH): 145x 38x 22mm
