The Shuttle XPC nano NA10H7 is equipped with the AMD Ryzen 7 8845HS, part of the Ryzen 8040 family and based on the Zen 4 architecture. The processor features 8 cores and 16 threads, with operating frequencies ranging from 3.8 to 5.1 GHz, and is complemented by integrated AMD Radeon 780M graphics.
One of its key innovations is the inclusion of a Neural Processing Unit (NPU) specifically designed to accelerate AI-related workloads. This unit provides up to 16 TOPS, while the combination of CPU, GPU, and NPU allows for a total AI processing capacity of 39 TOPS.
These features make the NA10H7 a particularly attractive option for professional applications that are beginning to incorporate local AI processing, automation, data analysis, content creation, and other workloads that can benefit from hardware acceleration.
Up to 96 GB of DDR5 memory.
Despite its compact size, the Shuttle NA10H7 offers configuration options typically found in larger systems. It features two DDR5-5600 SO-DIMM slots, compatible with up to 96 GB of RAM in a dual-channel configuration.
For storage, it includes an M.2-2280 slot with a PCIe Gen4 x4 NVMe interface, while a second M.2-2230 slot allows for the installation of a wireless connectivity module. The system also comes with two pre-installed internal WLAN antennas.
Up to four 4K monitors.
Another highlight of the XPC nano NA10H7 is its graphics and display connectivity capabilities. The system can simultaneously control up to four monitors with 4K resolution at 60 Hz.
It features two HDMI 2.0 outputs and two USB Type-C ports compatible with DisplayPort 1.4. This configuration allows for multi-monitor workstations while keeping the computer virtually hidden thanks to its small size.
The two USB Type-C ports also offer a maximum bandwidth of 40 Gbit/s, expanding connectivity options for high-performance storage devices and peripherals.
Dual 2.5 Gigabit Ethernet Networking
: Network connectivity is another area where Shuttle has focused its attention. The NA10H7 incorporates two 2.5 Gbit/s Ethernet interfaces, a feature that allows you to work with two independent physical networks and expands its usage possibilities beyond the conventional office PC.
This dual connection opens the door to different professional scenarios, from workstations and communication systems to certain server applications, enterprise networks, or AIoT projects.

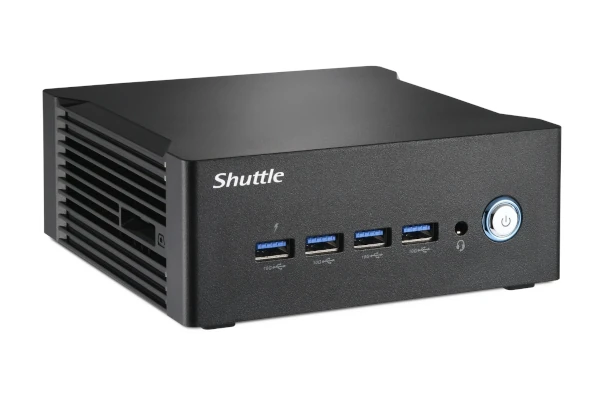

Regarding conventional USB connections, the front panel includes four USB 3.2 Gen 2 Type-A ports with speeds up to 10 Gbit/s. The rear panel adds another USB 3.2 Gen 2 Type-A port and a USB 2.0 port, in addition to two USB Type-C ports. The package is completed with a 3.5 mm audio jack and an SD card reader located on the side.
A computer weighing just over a liter.
All this hardware is integrated into a chassis measuring only 132 x 143 x 55 mm, with an approximate volume of 1.04 liters and a net weight of 800 grams.
Shuttle includes a VESA mount as standard, compatible with the 75 x 75 and 100 x 100 mm standards, so the computer can be installed behind a monitor or attached to other compatible surfaces. This makes it possible to create workstations with minimal hardware presence on the desk.
To keep the Ryzen 7 8845HS's temperatures under control, the manufacturer uses a heat-pipe cooling system with two fans: an 80 mm fan for the processor and a 60 mm fan located at the bottom of the chassis.
The processor also allows you to configure its cTDP of 35, 45, or 54 watts, making it easy to adapt the system to different performance and operating needs.
Security and Professional Performance:
The Shuttle XPC nano NA10H7 incorporates hardware TPM 2.0 and a Kensington lock slot for physical security.
Features designed for professional installations include Wake-on-LAN, PXE boot, scheduled power-on via RTC, and automatic recovery after a power outage.
The barebone system supports 64-bit Windows 11 and 64-bit Linux operating systems and ships without an operating system, RAM, or SSD, allowing integrators or end users to configure these components according to their project requirements.
With the NA10H7, Shuttle brings the capabilities of the AMD Ryzen 8040 platform and dedicated AI acceleration to one of its most compact form factors. The combination of 39 TOPS of AI capacity, up to 96GB of DDR5 RAM, four 4K displays, USB4, and dual 2.5GbE Ethernet positions the system as a versatile platform for professional workstations, content creation, enterprise deployments, and new projects based on local AI processing.
