The power input and output lines are connected via robust, easy-to-use clips.

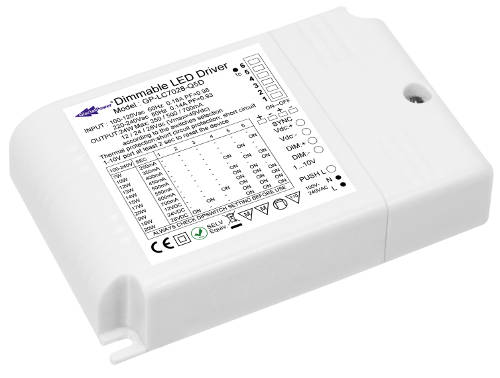

The GP-LC7028 LED driver is two LED drivers in one, with easy DIP switch configuration for either constant voltage or constant current modes for enhanced functionality. It can be easily adapted to specific LED lighting needs with eight constant current operating modes ranging from 250 mA to 700 mA, and constant voltage modes of 12V, 24V, and 28V output. For constant current mode with 1-10V dimming and boost dimming, it can also be easily enabled with a dimmer.
As a Class 2 power supply, the GP-LC7028 LED driver is fully isolated and certified to EN6134-1 and EN6134-2-13 safety standards. It has also passed EN55015, EN61000, and EN6154 in internal testing. Furthermore, the overcurrent protection (OCP) and short-circuit protection (SCP) features of this LED driver will help customers comply with all relevant safety regulations in their LED lighting and signage applications. Backed by a 3-year warranty from GlacialPower, customers can be confident in the reliable and safe performance of the GP-LC7028.
Features
- Universal AC input up to 264 VAC
- Compatible with Constant Current or Constant Voltage modes
- Certified according to EN6134-1, EN6134-2-13
- Includes PFC function
- Fully insulated Class 2 plastic housing
- Constant Current mode with dimming and maximum dimming 1-10V
- 3-year warranty
- Protections: Overcurrent Protection (OCP) / Short Circuit Protection (SCP)
