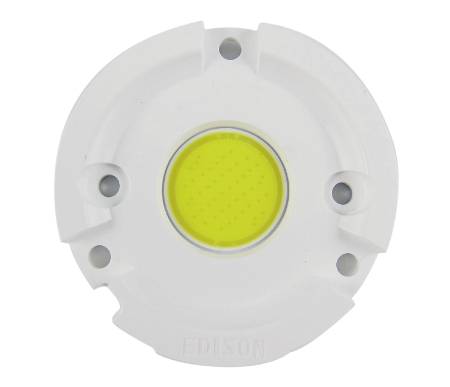

With the new SLM series, Edison Opto is partnering with the Zhaga consortium to offer standard LED solutions. This COB (Chip On Board) model offers high performance along with ease of assembly and installation. A variety of optics and reflectors are available that easily attach to these modules, providing a quick, reliable, and simple solution with excellent scalability.
These models are supplied with a connector and cables for plug-and-play operation.
The reflectors also come with the Edilex Ring accessory, which allows for easy mounting by simply rotating the reflector.
Available in 9, 11, 22, and 35W wattages in the same size, they offer a scalable and versatile solution. Furthermore, the CRI (Color Reflectance Index) of over 80% or 90% of these LEDs provides superior light quality for any application.
This series is ideal for interior and commercial lighting applications such as downlights, and as a replacement for MR16, AR11, and other similar fixtures.
Features:
o Power ratings of 9, 12, 22 and 35W
o Standard Zhaga
o CRI > 80
o 350, 700 and 1000mA versions
o Ideal for indoor applications
o Neutral White and Warm White versions
o Easy installation.
| Power (W) | CCT (K) | If (mA) | Vf (V) | Flow (Lm) | CRI |
| 9 | 3000 | 350 | 24-28 | 800 | 90 |
| 9 | 4000 | 350 | 24-28 | 800 | 90 |
| 11 | 3000 | 350 | 29-33 | 1000 | 90 |
| 11 | 4000 | 350 | 29-33 | 1000 | 90 |
| 22 | 3000 | 700 | 29-33 | 2000 | 90 |
| 22 | 4000 | 700 | 29-33 | 2000 | 90 |
| 35 | 3000 | 1000 | 33-37 | 3000 | 80 |
| 35 | 4000 | 1000 | 33-37 | 3000 | 80 |
