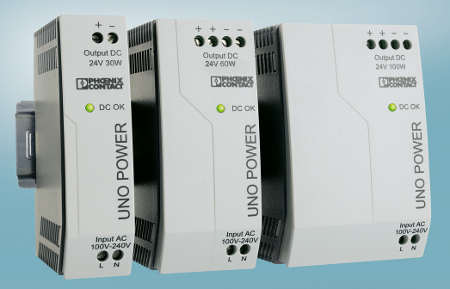

Three housings measuring 22.5 / 35 / 55 x 90 x 84 mm (length x height x width) save space in the distribution cabinet thanks to their narrow, low-profile design. 24 V DC output power supplies are available in 30, 60, and 100 W power classes, and 30 and 55 W power supplies are stocked for 12 V DC loads.
These power supplies are distinguished above all by their energy efficiency. Their low no-load losses (0.3 W) and optimized performance across the entire operating range result in significant energy savings compared to currently available products. With efficiencies exceeding 90% at nominal load, only a small amount of electrical energy is converted into unwanted heat. UL approvals and a wide input voltage range allow for worldwide use. Uno Power supplies support input voltages from 85 to 264 V AC and therefore operate reliably even in the event of power supply instability. Compensation times of up to 140 ms in the event of a full-load power interruption and an MTBF (Mean Time Between Failure) of over 500,000 hours ensure high operational reliability. The wide operating temperature range (from -25 to +70 °C) allows for outdoor use.
