Cebek supplies the six interfaces divided into two groups, depending on whether the model requires a 12 or 24 VDC power supply.

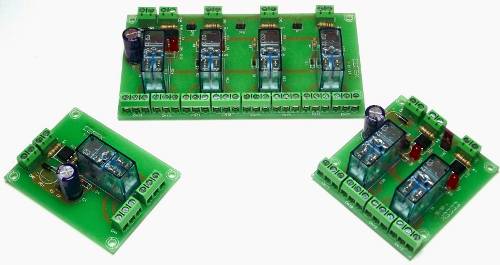

The models with 12 VDC power supply are the T-24 (one relay), the T-25 (two relays), and the T-21 (four relays).
The models with 24 VDC power supply are the T-34 (one relay), the T-35 (two relays), and the T-31 (four relays).
Each relay or channel is independent of the others and is electrically isolated from its corresponding control input. The control signal can be set with a voltage between 3 and 24 VDC and a minimum current of 5 mA.
All six models support a maximum load of 230V / 3A per relay contact.
Among their main applications, Cebek interfaces are used for the control of electrical sectors or machinery, isolation between logic circuits with respect to power outputs, serial industrial processes and autonomous operating systems, among others.
The T-24 and T-34 have a maximum current draw of 60 mA, the T-25 and T-35 a maximum of 110 mA, and the T-21 and T-31 a maximum of 200 mA.
The dimensions of all six interfaces are fully adaptable to DIN rail mounting using the corresponding sockets provided by Cebek.
All models include a local indicator for active connection status for each relay.
