- Compatible with three 4K displays
- Supports many AM4 CPUs with Radeon Vega graphics
- Dual Gigabit Ethernet, Remote Power On, RS-232

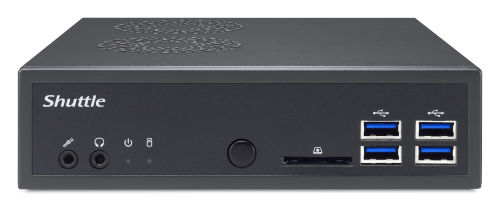

Under the name XPC DA320, this prelude comes in the form of a barebone system measuring just 4.3 cm thick, part of the "XPC slim" family. It features the series' signature look but supports current AMD Ryzen CPUs on the AM4 socket and up to 32 GB of RAM. Like all Shuttle products in the 1.3-liter form factor, this solution is also exceptionally robust.
The integrated AMD Radeon graphics unit in the processor is optimal with up to three UHD displays that can be connected and used simultaneously via HDMI 2.0 and DisplayPort.
In professional settings, the two Gigabit network cards and two COM ports are also a significant advantage. For hard-to-reach locations, the Remote Power On feature, which allows the Mini PC to be started remotely, is extremely useful. The slim steel casing is compact and can be mounted on a variety of surfaces using the included wall/VESA bracket. Its ability to operate in ambient temperatures up to 50°C is another key benefit.
Along with the processor and RAM, the DA320 can be equipped with a 2.5" hard drive and two M.2 modules. Typically, it includes WLAN in the M.2-2230 slot and a fast NVMe SSD in the M.2-2280. Externally, the device has USB and audio connections.
The dual-fan cooling system with efficient heatpipes and a 120-watt power supply are extremely reliable, even under heavy loads.
Optional accessories include support legs for vertical operation (PS02), a Remote Power On connection cable (CXP01), a WLAN/Bluetooth module (WLN-M), a VGA connection cable (PVG01), a 19" mounting rack (PRM01), a hat profile rail mounting kit (DIR01), and an LTE kit (WWN03).
Shuttle's recommended price for the XPC Barebone DA320 is €240 (incl. 21% VAT).
