- Intel UHD Graphics 600
- consumes only 5 watts
- three monitor connections
The well-balanced combination of the low-power Intel J4005 Celeron Dual Core processor (clock speed up to 2.7 GHz) and Intel UHD Graphics 600, up to 8 GB of DDR4 memory, a 2.5-inch hard drive bay and an NVMe SSD, Gigabit Ethernet, and WLAN proves extremely compelling for a wide range of applications. The DL10J uses HDMI, DisplayPort, and VGA to connect to up to three monitors. Thanks to the included VESA mount, the PC can be concealed behind one of the monitors or placed on any surface due to its compact dimensions of only 19 x 16.5 x 4.3 cm (L x W x H).
"Ideal for use as a desktop PC in the office, as a fixed or mobile player for digital signage, or as a control PC in industrial environments," explains Tom Seiffert, Head of Marketing and Public Relations at Shuttle Computer Handels GmbH. "Like its predecessor, the DL10J impresses with its reliability thanks to the elimination of moving parts, making it suitable for continuous 24/7 operation."
The DL10J's special appeal lies in its ability to install a 3G/4G module in M.2 format, enabling mobile internet access. This requires the optional M.2 adapter kit WWN01, which includes a SIM slot and two mobile phone antennas, replacing the factory-installed WLAN module.

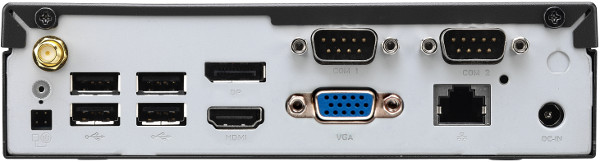

On the back is a multi-pin connector that allows remote startup of the device, e.g., in the case of a fixed installation in a hard-to-reach location. The DL10J motherboard also features an Always On jumper, which allows for immediate connection after power is supplied.
Other optional accessories include two support legs for vertical operation (PS02), a connection cable for remote power-on connection (CXP01), and a 19" mounting frame for rack mounting over 2U (PRM01).
