The sensor system is based on standard JENCOLOR® components: the MTCSiCF (true color sensor) and MCDC04 (signal converter). The sensor is based on the CIE1931 XYZ color standard, while the signal converter provides a 16/20-bit output with a dynamic range of 1 to 1,000,000. The evaluation kit is designed for customer-specific calibrations.
JENCOLOR® true color sensors and integrated signal circuits are the ideal solution for stabilizing LED light against aging, binning, and temperature changes. They are also used in industrial color measurement, medical applications, and metrology solutions.
True color measurement made simple
The sensor system is based on the standard JENCOLOR® components MTCSiCF (true color sensor) and MCDC04 (signal converter). Therefore, displays can be measured at very low brightness levels with high accuracy – even high-brightness LEDs with dimmable output at high temperatures (>100°C) and brightness levels can be measured close to the target.
The colorimeter features a micro USB interface and can be controlled directly via Windows software. The software includes ADC parameters such as gain, integration time, deviation correction, and divider options. Values can be individually calibrated for the application, and various output options are available (color spaces, export functions, etc.). The MTCS-C3 is an ideal solution for LED testing in manufacturing or incoming goods inspection and is a cost-effective solution for use at multiple measurement points. Simple user calibration can be performed on an existing selection of LEDs, and corrective action can be taken as soon as any color or brightness deviations occur.
Special features such as flicker detection for displays have even been implemented. For customer applications, software customization is available, or DLL libraries can be used to develop and integrate their own software solution.

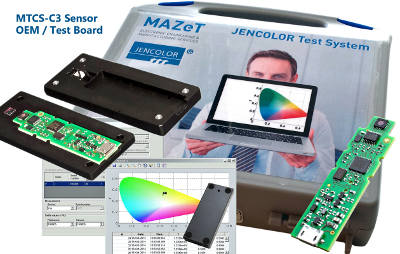

The MTCS-C3 is available in four versions: as an OEM board with or without a metal enclosure, or as a development kit including software, also with or without a metal enclosure. Only one software license is required for use with multiple sensors.
