A single module can provide up to 60A of output current, and two modules can be connected in parallel achieving up to 120A. The output voltage can be precisely adjusted within the range of 0.6-4.5V to meet a wide range of power requirements.
Advantages
1. PMBus Digital Protocol: The output voltage is programmable via an external resistance divider or a PMBus command, without additional peripheral components
2. Wide Adjustable Output Voltage Range: Output voltage range up to 0.6-4.5V, can be flexibly applied in distributed power systems, such as ASIC, FPGA, DSP, CPU/GPU, and RAM, etc.
3. High performance: High output voltage deviation: ±2mV; Low output ripple and noise: 4mV; Fast load transient response: 18mV

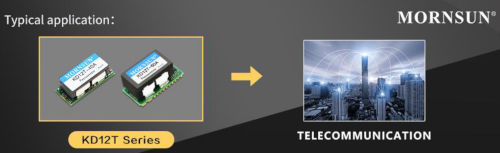

4. Multiple Protections Input undervoltage protection Output overvoltage/undervoltage protection Output overcurrent, overtemperature and short circuit protection Applications The KD12T series products can be widely used in the fields of communications, computer networking industries and distributed power architecture, workstations, servers, LAN/WAN, providing high current with fast transient response for high-speed FPGA, DSP and ASIC chips.
Characteristics
- Configuration and monitoring using PMBus
- Wide input voltage range: 7.5 to 14.4VDC
- Wide output voltage range: 0.6 to 4.5 VDC
- Shared current for up to 2 modules
- High performance of up to 92
- High output voltage deviation: ±2mV
- Low ripple and output noise: 4mV
- Fast transient load response 18mV
- Wide operating temperature range: -40℃ to 85℃
- Ultra-small size: 40A: 33.03x13.46x10.6 mm; 60A: 25.4 x 12.7 x 12.96 mm
- CNTL (remote control), Power Good,
- Output voltage monitoring and sequencing, differential remote detection
- Fixed switching frequency with external synchronization capability
- Current sharing function
- Protection against input undervoltage
- Output overvoltage/undervoltage protection
- Output protections against overcurrent, overtemperature and short circuit
