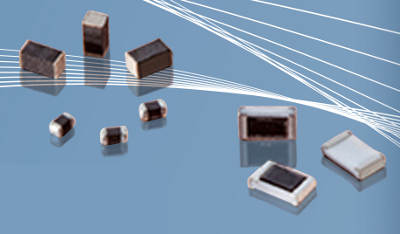

The SM04, SM06, and SM08 thermistors
offer very fast response times while saving space in LCD controls, relay coils, crystal oscillators, and hybrid circuits. These thermistors provide a cost-effective alternative to NTC and pin-type thermistors, and their dissipation constants of 1.10 mW/°C, 1.50 mW/°C, and 2.00 mW/°C, respectively. With thermal time constants below 1.5 seconds and low profiles as small as 0.35 mm, the SM04, SM06, and SM08 offer cost-effective alternatives to NTC and pin-type thermistors. The SM04, SM06, and SM08 also reduce costs by supporting automated insertion during manufacturing.
The thermistors offer a wide range of resistance values, from 200 Ω to 470 kΩ, with tolerances as low as 1%, beta values from 2500 K to 4500 K, and an operating temperature range of -40°C to +125°C. Featuring nickel barrier terminations, the SM04, SM06, and SM08 series are suitable for wave soldering and reflow soldering and offer level 2 humidity sensitivity for high reliability. The devices are available in standard tape and reel packaging in quantities from 100 to 5000 pieces.
