It can be used for primary current detection and to emit isolated voltage signals.
Advantages
1. Superior Materials
① The high magnetic permeability and low coercivity magnetic core material allows the transducer to have a faster response and higher sensitivity.
② The use of Hall effect regulator ICs as the core IC allows the transducer to have a smaller size, greater integration, and better consistency.
2. Automated Production
① Highly automated manufacturing from winding and SMD to packaging and shipping ensures high quality, efficiency, cost-effectiveness, and a low defect rate.
3. High Accuracy
① Accuracy up to 0.45

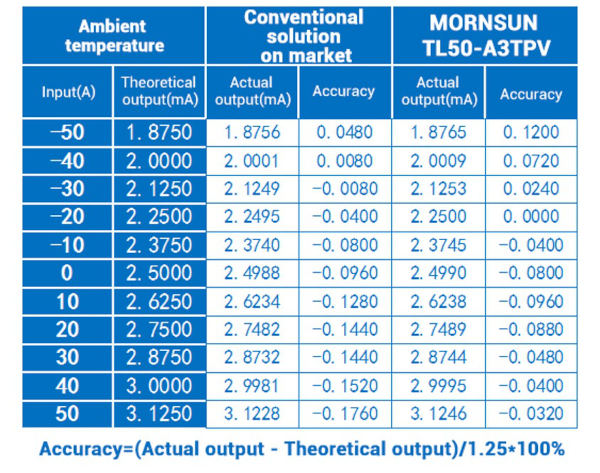

② Relatively high measurement accuracy at room temperature. A data table is shown below:

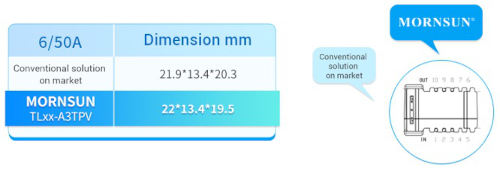

4. Wide compatibility.
Pin-to-pin compatible with most major products on the market.

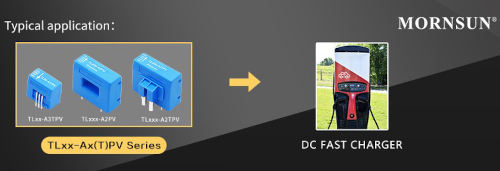

Applications
The TLxx-Ax(T)PV series is suitable for industrial control current sensing applications requiring high accuracy, linearity, and temperature drift. Examples include inverters, AC variable frequency drives and servomotors, welding power supplies, UPS systems, battery power supplies, inverter power supplies, DC motor static converters, and DC fast chargers, etc.
Features
• AC, DC, or pulse currents can be measured
• Wide operating temperature range: -40℃ to +105℃
• Excellent accuracy and linearity (linearity up to 0.1%, accuracy up to 0.45%)
• No insertion loss
• High immunity to external interference
• Unique power supply technology and compact PCB mounting design
