Now, MEAN WELL introduces a new generation of ultra-wide input converters, including the single-output series: SPA01W8 / SPA02W8 / SPBW03W8 / SPBW06W8 / SPB09W8 and the dual-output series: DPA01W8 / DPAN02W8 / DPBW03W8 / DPBW06W8 / DPB09W8.
These five new product series, distributed in Spain and Portugal by Electrónica OLFER, are distinguished by their wide 8:1 input voltage range (9-75VDC), which not only meets broader voltage requirements but also simplifies model selection by standardizing all models. The new converters are pin-compatible with the previous generation, allowing for immediate and easy replacement for end-user system designers.

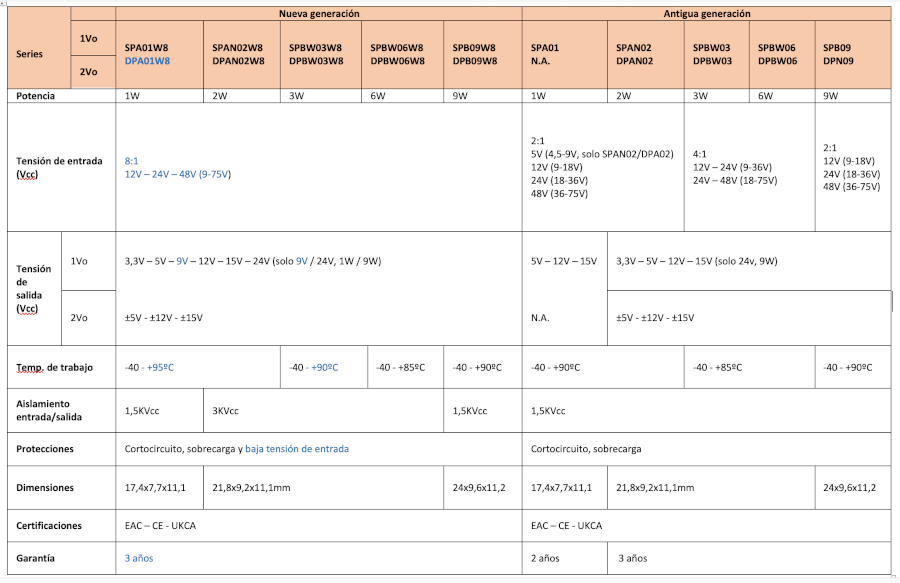

To compare key features and specifications between the new and previous generations, please see the table below:
FEATURES
• SIP form factor
• Ultra-wide 8:1 input range (9-75VDC)
• Free air convection; -40°C to +95°C (varies by model)
• Compliant with EMI EN55032 Class A standard without external components
• Stable operation with minimal load
• Protections: short circuit, overload, overvoltage, and undervoltage
• Certifications: EAC/CE/UKCA
• 3-year warranty
