Each family offers an extensive catalog of references with common Pins that gives designers the ability to scale their solution in search of the best combination of costs and performance.

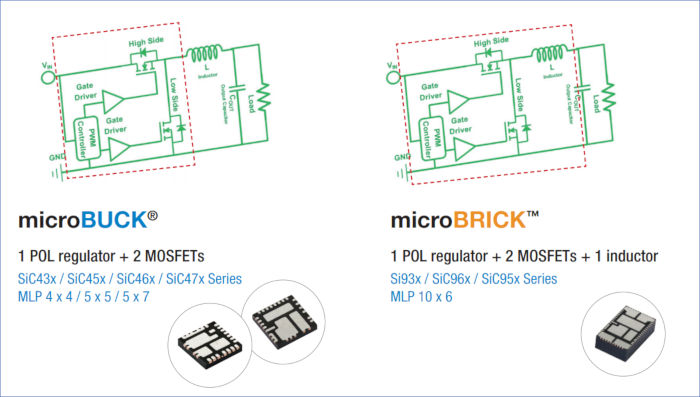

With a Buck Converter topology, the MicroBUCK® series integrates PWM control, drivers and MOSFETs into a single package... in the case of the MicroBRICK® series, inductance is added to the above configuration.
Its specifications cover an input range from 18V to 60V, with adjustable outputs from 2A to 40A; to be able to adapt to the different needs of the multiple applications that have their cutting edge in electronics.
Factory Automation, Home Automation, Base Stations and Repeaters, Network Equipment, Robotics, Battery Management Systems, Power Tools, Terminals / Points of Sale, etc.
By combining robust, high-performance N-channel MOSFETs with a PWM controller and drivers in a compact 5x5 package (PowerPAK® package), this VISHAY device achieves high power density and high efficiency, while also reducing the number of external components required thanks to high integration and internal compensation.
Operating current consumption is minimal (<200uA) to achieve peak efficiency of 98% and reduce power losses. The thermal design of the package minimizes cooling requirements, allowing for smaller PCBs and heatsinks, thus improving costs.
The regulators can adjust their operating frequency from 100kHz to 2MHz, and feature a soft start and current limiter. The internal architecture provides a stability loop regardless of the output capacitor type, allowing the use of low-ESR ceramic capacitors. They include a set of protections such as OVP (output overvoltage protection), UVP (output undervoltage protection), OCP (overcurrent circuit protection), SCP (short circuit protection), and OTP (overtemperature protection).
